Muffle Furnace

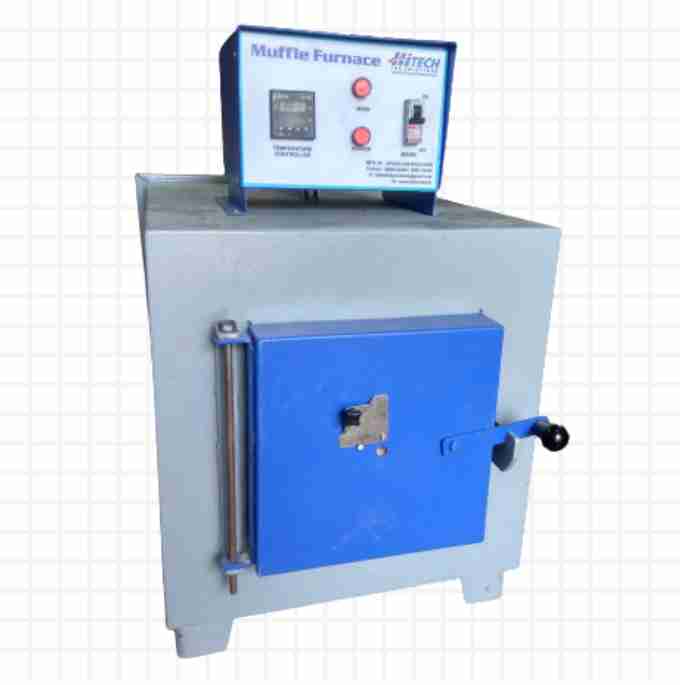

MUFFLE FURNACE STANDARD/GMP MODEL Upto 900 °C

muffle-furnace-900

SPECIFICATIONS

Type of Furnace : Electrically Heated Muffle furnace.
Working Temp Range : 5 degree above ambient to 900°C
Maximum Working temperature : 1000°C for Max 1 hr only
Temp Accuracy : +/- 3°C .
Temp. Uniformity : +/- 5°C throughout the chamber.
Muffle is made of siliminite.
The lining of the door is done by High quality Mythan bricks.
Temp. Display : Digital LED 3 ½ digit , Resolution 1°C.
Back Port venturi system for quick exhaust.
A grade K type sensor used for better accuracy.
No contact of Hot surface to body for heat loss prevention.
Front Hole for observation with shutter Knob.

MODEL NO.	CAPACITY	DIMENSION IN CMS		WT IN KG		POWER
Standard	Litres	Chamber in cms	Over All	Unit	Packed in wooden case	VAC Hz	Watts
HT-MF900-2.3S/G	2.3	23 X 10 X 10	45 X 35 X 35	35	50	230,50	1800
HT-MF900-4.25S/G	4.25	25 X 13 X 13	47 X 38 X 38	45	60	230,50	2200
HT-MF900-6.75S/G	6.75	30 X 15 X 15	53 X 41 X 41	55	70	230,50	3000
HT-MF900-16S/G	16	30 X 23 X 23	54 X 50 X 50	75	100	230,50	5000
HT-MF900-24S/G	24	45 X 23 X 23	69 X 50 X 50	85	110	230,50	6000
HT-MF900-29S/G	29	30 X 30 X 30	57 X 57 X 57	110	145	230,50	7500

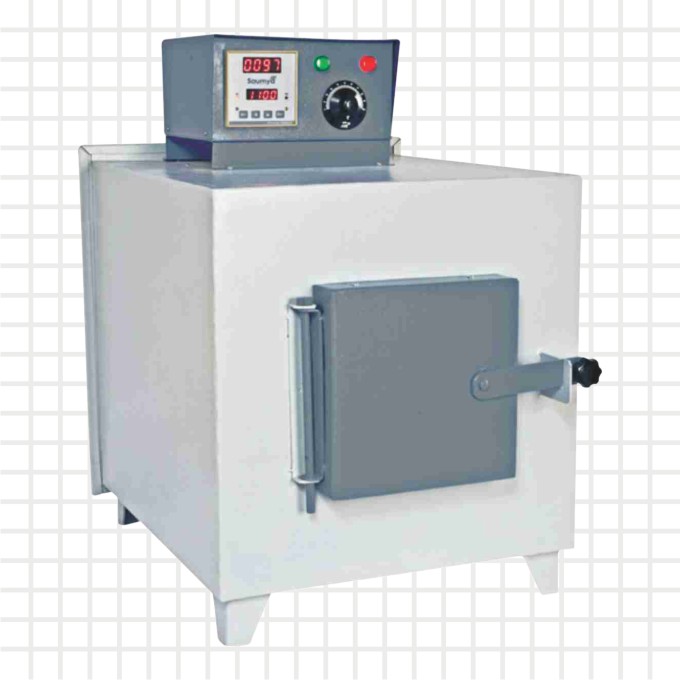

MUFFLE FURNACE STANDARD/GMP MODEL Upto 1200 °C

muffle-furnace-1200

SPECIFICATIONS

Type of Furnace : Electrically Heated Muffle furnace.
Working Temp Range : 5 degree above ambient to 1200°C
Maximum Working temperature : 1200°C for Max 1 hr only
Temp Accuracy : +/- 3°C .
Temp. Uniformity : +/- 5°C throughout the chamber.
Muffle is made of sillimanite Make Kumar brand.
The lining of the door is done by High quality Mythan bricks.
Temp. Display : Digital LED 3 ½ digit , Resolution 1°C.
Back Port venturi system for quick exhaust.
A grade K type sensor used for better accuracy.
No contact of Hot surface to body for heat loss prevention.
Front Hole for observation with shutter Knob.

MODEL NO.	CAPACITY	DIMENSION IN CMS		WT IN KG		POWER
Standard	Litres	Chamber in cms	Over All	Unit	Packed in wooden case	VAC Hz	Watts
HT-MF1200-2.3S/G	2.3	23 X 10 X 10	45 X 35 X 35	35	50	230,50	1800
HT-MF1200-4.25S/G	4.25	25 X 13 X 13	47 X 38 X 38	45	60	230,50	2200
HT-MF1200-6.75S/G	6.75	30 X 15 X 15	53 X 41 X 41	55	70	230,50	3000
HT-MF1200-16S/G	16	30 X 23 X 23	54 X 50 X 50	75	100	230,50	5000
HT-MF1200-24S/G	24	45 X 23 X 23	69 X 50 X 50	85	110	230,50	6000
HT-MF1200-29S/G	29	30 X 30 X 30	57 X 57 X 57	110	145	230,50	7500

SILICON CARBIDE FURNACE STANDARD/GMP MODEL Upto 1400 °C

muffle-furnace-1400

SPECIFICATIONS

Type of Furnace : Electrically Heated Muffle furnace.
Working Temp Range : 5 degree above ambient to 1300°C
Maximum Working temperature : 1400°C for Max 1 hr only
Temp Accuracy : +/- 3°C .
Temp. Uniformity : +/- 5°C throughout the chamber.
Muffle is made of sillimanite Make Kumar brand.
The lining of the door is done by High quality Mythan bricks.
Temp. Display : Digital LED 3 ½ digit , Resolution 1°C.
Back Port venturi system for quick exhaust.
A grade K type sensor used for better accuracy.
No contact of Hot surface to body for heat loss prevention.
Front Hole for observation with shutter Knob.

MODEL NO.	CAPACITY	DIMENSION IN CMS		WT IN KG		POWER
Standard	Litres	Chamber in cms	Over All	Unit	Packed in wooden case	VAC Hz	Watts
HT-MF1400-2.3S/G	2.3	23 X 10 X 10	45 X 35 X 35	35	50	230,50	1800
HT-MF1400-4.25S/G	4.25	25 X 13 X 13	47 X 38 X 38	45	60	230,50	2200
HT-MF1400-6.75S/G	6.75	30 X 15 X 15	53 X 41 X 41	55	70	230,50	3000
HT-MF1400-16S/G	16	30 X 23 X 23	54 X 50 X 50	75	100	230,50	5000
HT-MF1400-24S/G	24	45 X 23 X 23	69 X 50 X 50	85	110	230,50	6000
HT-MF1400-29S/G	29	30 X 30 X 30	57 X 57 X 57	110	145	230,50	7500

SILICON CARBIDE FURNACE STANDARD/GMP MODEL Upto 1600 °C

muffle-furnace-1600

SPECIFICATIONS

Type of Furnace : Electrically Heated Muffle furnace.
Working Temp Range : 5 degree above ambient to 1500°C
Maximum Working temperature : 1600°C for Max 1 hr only
Temp Accuracy : +/- 3°C .
Temp. Uniformity : +/- 5°C throughout the chamber.
Muffle is made of sillimanite Make Kumar brand.
The lining of the door is done by High quality Mythan bricks.
Temp. Display : Digital LED 3 ½ digit , Resolution 1°C.
Back Port venturi system for quick exhaust.
A grade K type sensor used for better accuracy.
No contact of Hot surface to body for heat loss prevention.
Front Hole for observation with shutter Knob.

MODEL NO.	CAPACITY	DIMENSION IN CMS		WT IN KG		POWER
Standard	Litres	Chamber in cms	Over All	Unit	Packed in wooden case	VAC Hz	Watts
HT-MF1600-2.3S/G	2.3	23 X 10 X 10	45 X 35 X 35	35	50	230,50	6000
HT-MF1600-4.25S/G	4.25	25 X 13 X 13	47 X 38 X 38	45	60	230,50	7500
HT-MF1600-6.75S/G	6.75	30 X 15 X 15	53 X 41 X 41	55	70	230,50	9000
