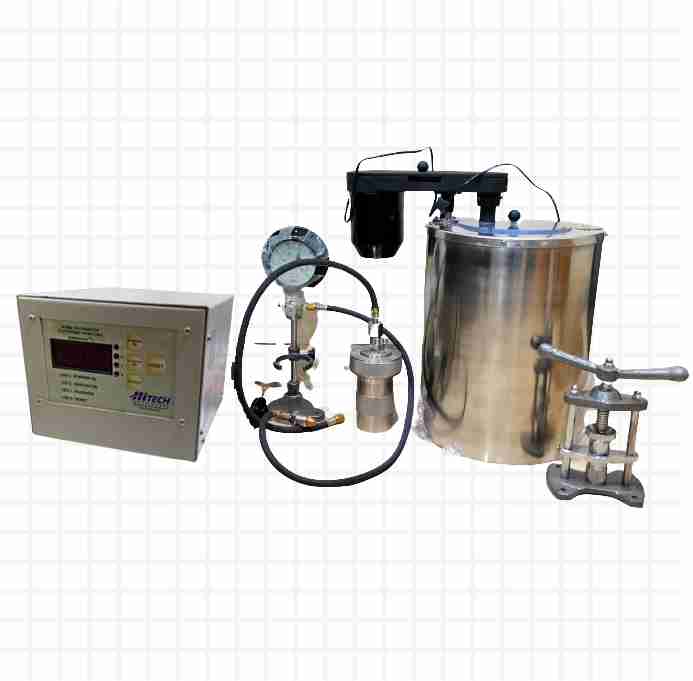

Bomb Calorimeter

Home Petroleum Testing Products Bomb Calorimeter
cryostat-bath

Test Method

Determines the ‘Gross Calorific Value of any solid or liquid sample by determining the water equivalent by burning 1 Gm. of Known CV sample.

Standard

Confirm to the specification ASTM D4809, D240, DE711, IS -1350- 1966, BS 1016 PART 5-1967, IP 12/63 T.

Manual

  • Double walled construction, thermally insulated by pouring approx. 18 ltr water in the outer jacket.
  • Made of full stainless steel.
  • Type of Method: Isothermal.
  • Method of Detecting Temp. Rise: Manual observation.
  • Calorimeter vessel made of SS
  • Bomb support to ensure correct positioning of bomb in vessel.
  • Ambient Working Temp Range : 15 to 35 ℃
  • Heat Capacity:5800 to 6500 cal/℃
Read more

Semi Automatic

  • Double Walled Construction, Thermally Insulated By Pouring Approx. 18 Ltr Water In The Outer Jacket.
  • Made Of Full Stainless Steel.
  • Digital Display of Temperature.
  • Auto Temp. Rise Detection Based On Microprocessor Chip Based. User Has To Press One Button And Is Free For Doing Other Thing While Microprocessor Will Take Reading Automatically.
  • Automatic Reading for Temp. Rise Calculation.
  • All The Necessary Interlock For Stirrer, Ignition Wire Continuity, Wire Loose, Over Load Etc.
  • Electrode Short Indication.
  • Continuity Test Indication.
Read more

Automatic

  • Type Of Method :- Isothermal.
  • Method Of Detecting Temp. Rise : Automatic
  • Method Of Detecting Calorific Value : Automatic
  • Microprocessor Based Firing Unit.
  • Automatic Measurement And Calculation Of Calorific Value / Water Equivalent.
  • 21 X 4 Character LCD Display
  • Thermal Printer Interface With Printout Report.
  • Auto Alarm On Completion Of Test.
Read more
