Test Method:-

The automatic Abel closed-cup tester measures the flash point, the lowest temperature at which the vapours of a sample ignite upon the application of an ignition source. The tester can also be used to detect the ability of a sample to yield flammable vapors when maintained at an equilibrium temperature by the flash/no flash method.

Standard: - ISO 13736, IP 170

Manual Model

abels-flash-point

Working

The temperature of the approximately 70 ml test specimen is increased rapidly at first and then at a slower constant rate as the flash point is approached. At specified intervals a test flame is passed across the cup, to measure the tendency of the test specimen to form a flammable mixture with air under controlled laboratory conditions.

Technical Specifications

Type HR-AFP-5A(Manual Model)
Measuring RangeHT-AFP1: 30°C to +110°C
HT-AFP2: -30°C to +110°C
Sample Cooling /HeatingCooling-By Cooling Coil in the Bath
Heating-By Water immersion Heater
DisplayVoltage Variac-For Control Heating
StrringManual
Temprature SensorPT-100 in Stainless Steel sheath
Flash DetectorThermometer ASTM 11C
Ignition SourceGas ignition with automatic ligthing or electric ignition.Interchageable
Gas Supply(When gas ignition is used)LP gas or natural gas(Max. pressure:10kPa)
Power Supply100/120VAC or220/240VAC,50/60Hz
Power Consumption250VA Max
Electric Consumption30Wh for 1 test (about 30 min), 11.34gCO2 (@ 0.378kgCO2/1kWh)

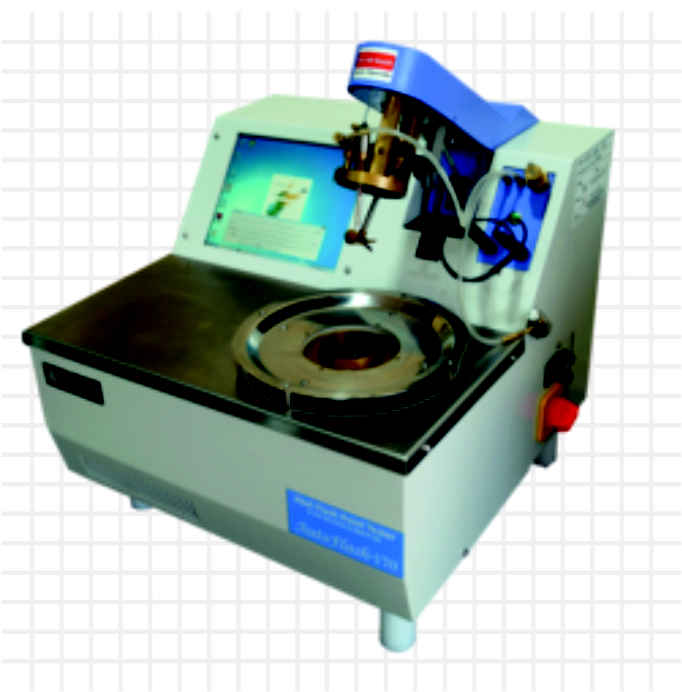

Automatic Model

abels-flash-point

Working

The temperature of the approximately 70 ml test specimen is increased rapidly at first and then at a slower constant rate as the flash point is approached. At specified intervals a test flame is passed across the cup, to measure the tendency of the test specimen to form a flammable mixture with air under controlled laboratory conditions. Select a test mode and enter the expected flash point; while the instrument executes the test, you are free to do other lab work. The instrument follows the exact procedures prescribed in the test method, and the completion of the test cycle is signaled by beeps. The test result is brightly shown on the color LCD module. The unit is equipped to store up to 200 successive test results and export to an optional printer or to a LIMS through an RS-232 port or USB memory

Technical Specification

Type All-in one,microprocessor controlled
Test StandardsISO 13736/ IP170, ISO 1516, ISO 1523
Measuring RangeHT-AFP1: 30°C to +110°C HT-AFP2: -10°C to +110°C
Measurement ModesISO13736 Normal,ISO13736 Rapid
BathMetal Block
Sample Cooling /HeatingCooling-By Cooling Coil in the Bath
Heating-By Water immersion Heater
Display5.7 inch(117x88mm)color LCD with LED back light
Strring0,30rpm(selectable)
Temprature SensorPT-100 in Stainless Steel sheath
Flash DetectorPT-100 sensor
Ignition SourceGas ignition with automatic ligthing or electric ignition.Interchageable
I/O PortRS-232C = 1 channel (for PC or Optional Printer) USB=1 channel (for USB keyboard or USB Flash Memory)
Safety ShutdownAutomatically shuts off and the problem is reported by buzzer and display, in case: (a) EFP+10℃ or 70℃ (ISO13736)110℃ (ISO1516,ISO1523) is reached, (b) temperature sensor is found defective, (c) flash detector is found defective, (d) thermofuse is blown, (e) electric Igniter is blown, (f) built-in battery is found drained out, (g) test cover is not set in place, (h)control computer runs away (no display)
Gas Supply(When gas ignition is used)LP gas or natural gas(Max. pressure:10kPa)
Power Supply100/120VAC or220/240VAC,50/60Hz
Power Consumption250VA Max
Electric Consumption30Wh for 1 test (about 30 min), 11.34gCO2 (@ 0.378kgCO2/1kWh)
