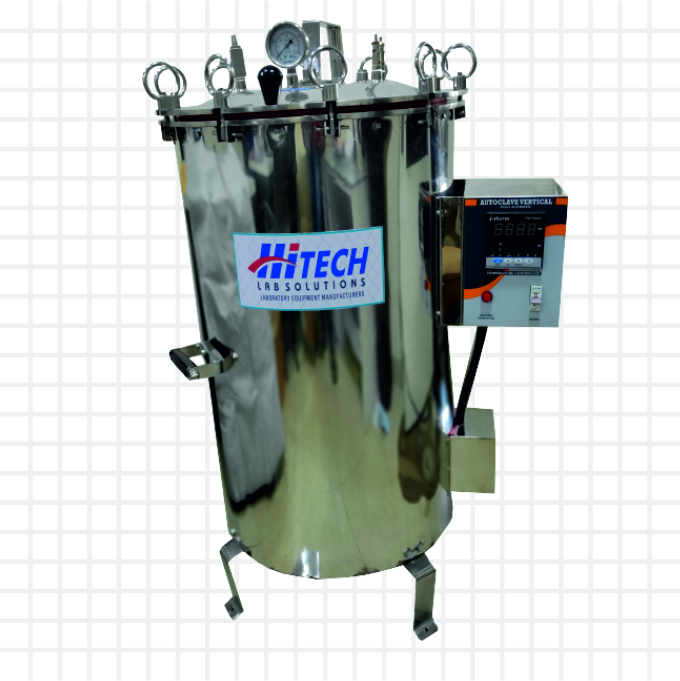

Vertical Autoclave
Features
- Microcomputer intelligent control .
- Interior and exterior made of chemical resistant Stainless steel SUS 304 .
- Self expanding seal ring Pressurized steam for efficient sterilization .
- Alarm function for completion of process and low water level .
- Automatic exhaust system for cold air and pressure .
- Over temperature protection device.
- Fully automatic and Manual both options available
Safety Features
- Pressure : Safety high pressure release value.
- Temperature : Safety high temperature cut off. Included if ordered separately
- Electric : Circuit Breaker
| Models | HT- AV-35G | HT- AV-52G | HT- AV-95G | HT- AV-125G | HT- AV-175G |
|---|---|---|---|---|---|
| Capacity | 35 L | 52 L | 95 L | 125 L | 175 L |
| Sterilization | Temperature 121°C-125°C | ||||
| Working Pressure | 0.145-0.165 MPa | ||||
| Chamber Dimension (Dia x Depth) | 12 x 20cm | 35 x 55cm | 45 x 60cm | 45 x 70cm | 55 x 75cm |
| Power | 2.0 W | 3.0 KW | 4.0KW | 4.0 KW | 6.0 KW |
| Power Supply | 0.220 V, 60Hz | ||||
| Weight | 34/43 kg | 64/76 kg | 68/81 kg | 71/86 kg | 90/98 kg |
