Single Distillation of Petroleum Product
Features
- Test equipment conforming to ASTM D86 / IP123 with electric heating assembly with Copper coil type voltage variac temperature controller, cooling bath (non-refrigeration), distillation flask 125ml, graduated cylinder 100ml, heater boards with 38 & 50mm diameter center holes made of Ceran Glass, thermometers conforming to ASTM 7C & 8C supplied with certificate. ℃.
- Power supply : 230 ±10% Volt AC, 1 Phase, 50 Hz.
-
Standard: - Confirms to: ASTM D86. IP 123. IS:1448.P-18

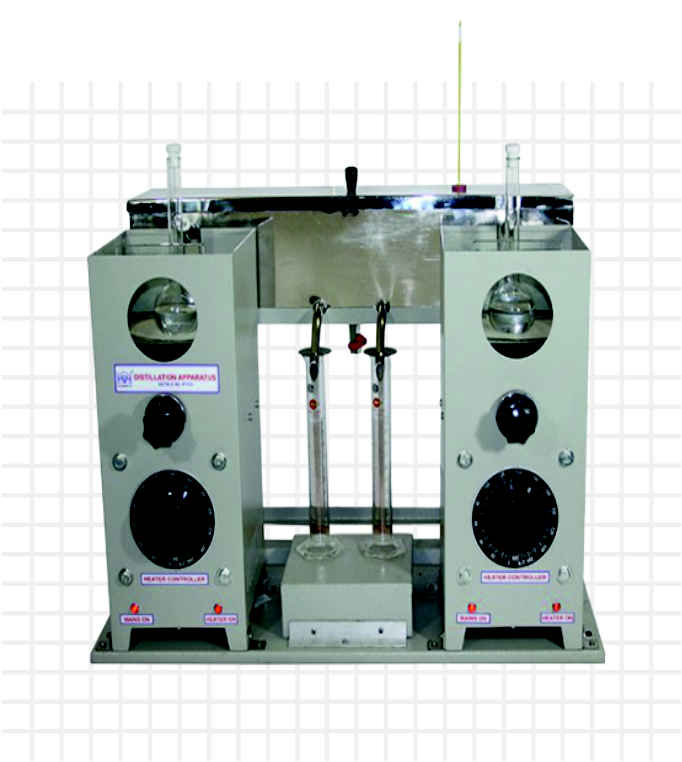

Twin Distillation of Pertoleum Products
Features
- Test equipment conforming to ASTM D 86 / IP 123 with electric heating assembly with Copper coil type voltage variac temperature controller, cooling bath (non-refrigeration), distillation flask 125ml, graduated cylinder 100ml, heater boards with 38 & 50mm diameter center holes made of Ceran Glass, thermometers conforming to ASTM 7C & 8C supplied with certificate.
- Power supply : 230 ±10% Volt AC, 1 Phase, 50 Hz.
| Equipments | Equipment Dimensions | Shipping Dimensions | Net Weight | Shipping Weight |
|---|---|---|---|---|
| Single Unit | 45 W x 50 D x 60.5 H Cm | 55 W x 60 D x 70 H Cm | 40.0Kg | 65.0Kg |
| Twin Unit | 100.5 W x 60.5 D x 60.7 H Cm | 110 W x 70 D x 70 H Cm | 70.0Kg | 100.0Kg |
Electrical Requirement
- 220-240V, 50/60Hz, Single Phase, 10.0A
- OR 115V, 50/60Hz, Single Phase, 18.0A
ORDERING INFORMATION :-
| Catalogue No | Product Description |
|---|---|
| HT - 2A - S/G | Single Distillation Range Apparatus |
| HT - 2B - S/G | Double Distillation Range Apparatus |
| HT - 2C - S/G | Single Distillation Range Apparatus Refrigerated Model |
| HT - 2D - S/G | Double Distillation Range Apparatus Refrigerated Model. |
